Von Arx DTF 25 SH Shaver
Von Arx DTF 25 SH Surface Shaver
Brief Description:
The DTF 25 SH is a high-performance diamond blade surface shaver designed for precision grinding. Unlike traditional scarifiers, it grinds rather than chips, delivering quieter operation and a smoother, more consistent finish. Ideal for both rough and fine surface preparation, this machine is built for professionals who demand accuracy and reliability.
DTF25SH 400V Technical Specs

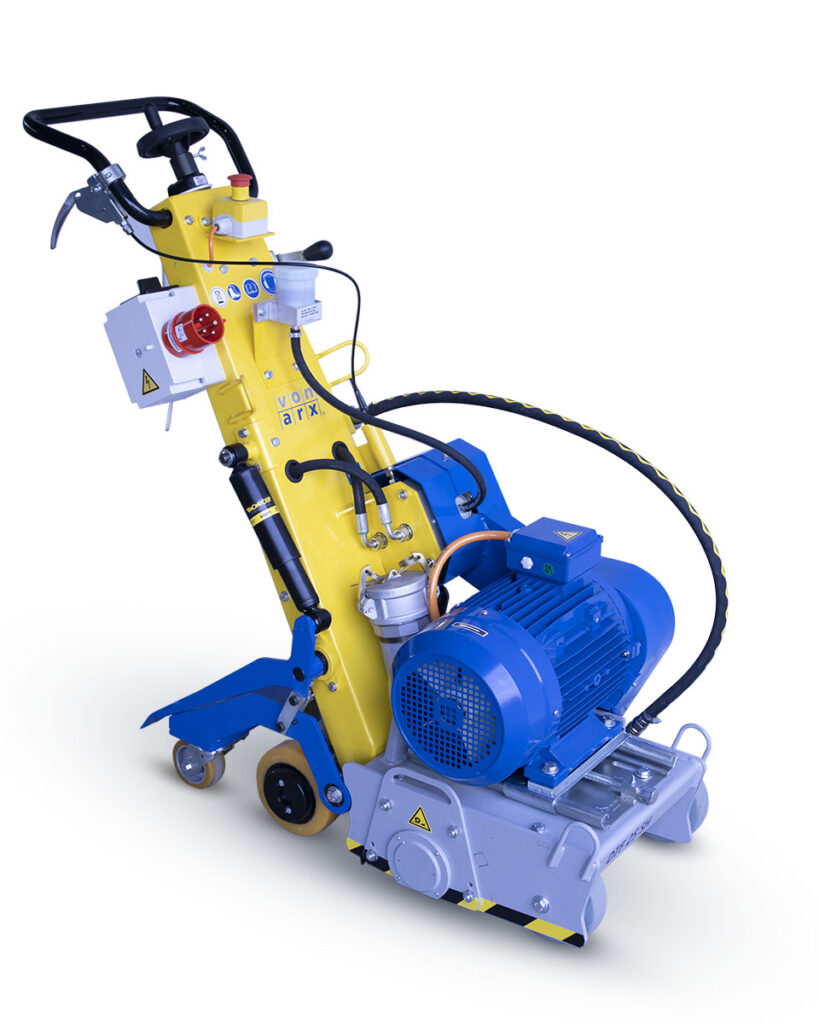

Technical Details – Von Arx DTF 25 SH (400V)
- Power Supply: 400V, 50Hz (Three-phase)
- Motor Output: 11 kW / 14.8 HP
- Weight: 223.2 kg / 492 lbs
- Working Width: 25 cm / 10″
- Distance to Wall: 10 cm / 4.1″
- Shaving Depth (Hard Concrete): Up to 10 mm / 0.40″
- Shaving Depth (Soft Concrete): Up to 12 mm / 0.48″
- Production Rate: 45–50 m²/h (485–540 ft²/h) at maximum depth
- Machine Dimensions: 115 × 48 × 115 cm (45 × 19 × 45 in)
- Cutting System: 66 pcs Diamond Blades (125 mm / 5″) – Included as standard
DTF25SH LPG Technical Specs

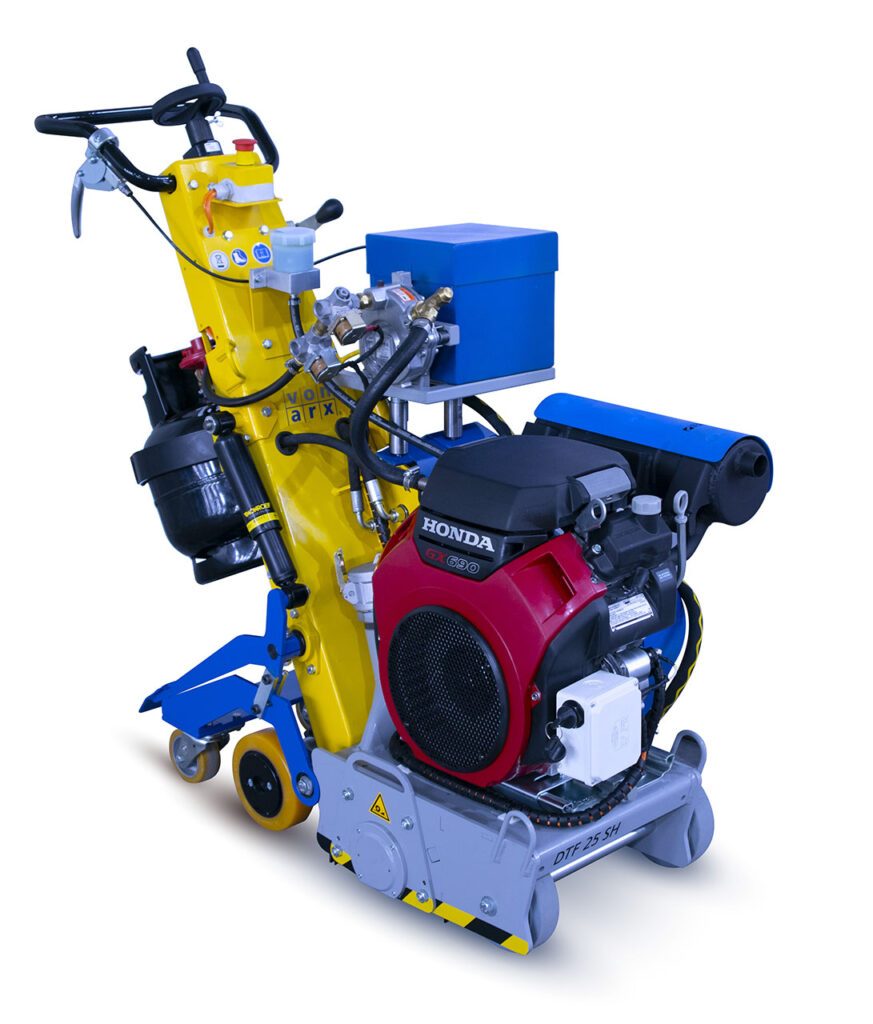

Technical Details – Von Arx DTF 25 SH (Propane Model)
- Article Number: 800076
- Engine Type: Honda 22 HP, Propane
- Power Output: 16.5 kW / 22 HP
- Weight: 240 kg / 529 lbs
- Working Width: 25 cm / 10″
- Distance to Wall: 6.7 cm / 2.6″
- Shaving Depth (Hard Concrete): Up to 10 mm / 0.40″
- Shaving Depth (Soft Concrete): Up to 12 mm / 0.48″
- Production Rate: 50–55 m²/h (540–595 ft²/h) at maximum depth
- Machine Dimensions: 115 × 48 × 115 cm (45 × 19 × 45 in)
- Cutting System: 73 pcs Diamond Blades (125 mm / 5″) – Included as standard
