SIGMA 1.25 NEX – Series 4

Product Tags:

Ceramics, Machine, Porcelain, Sigma, Tile Cutting, Tiling

Description
Features

SIGMA 1.25 NEX – Series 4

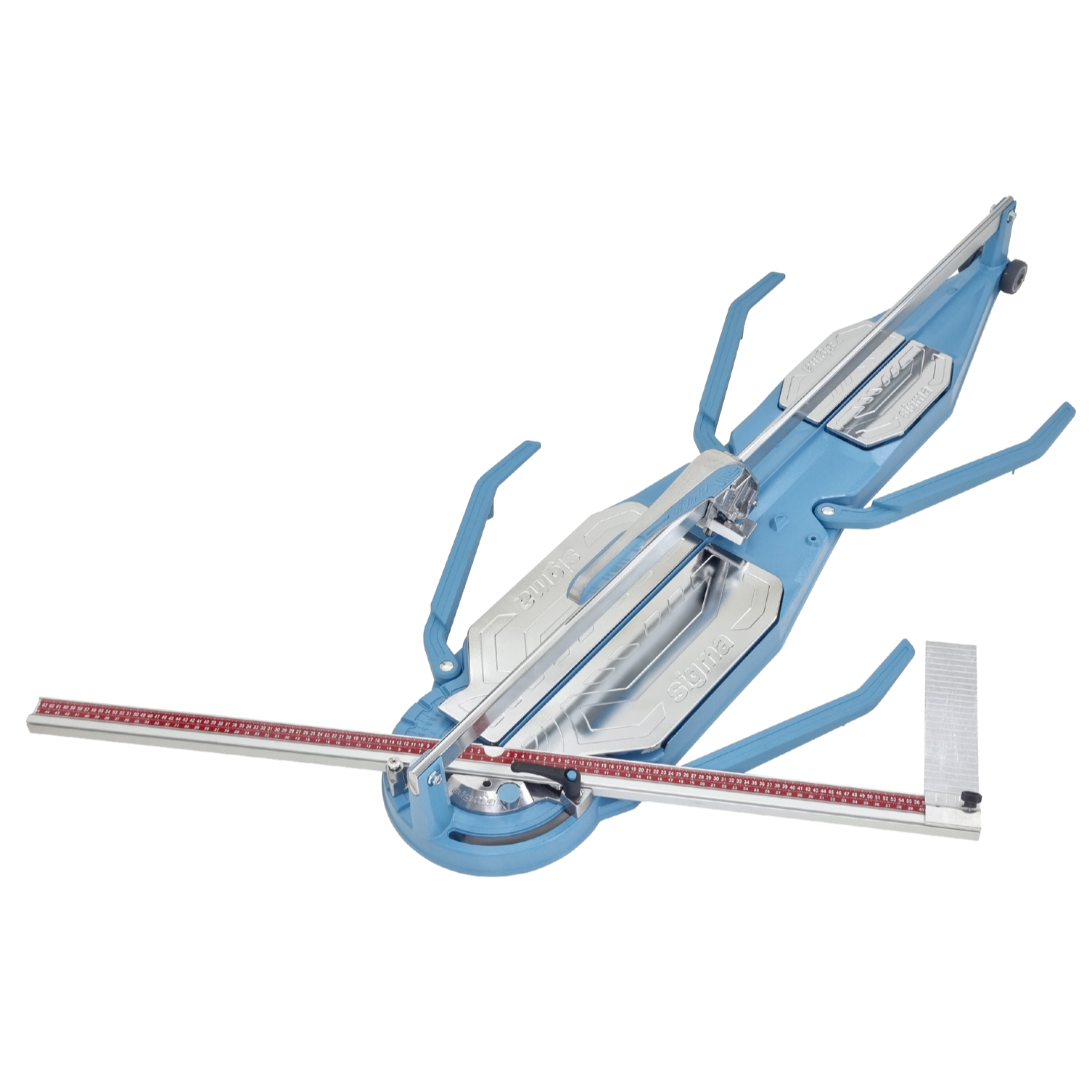

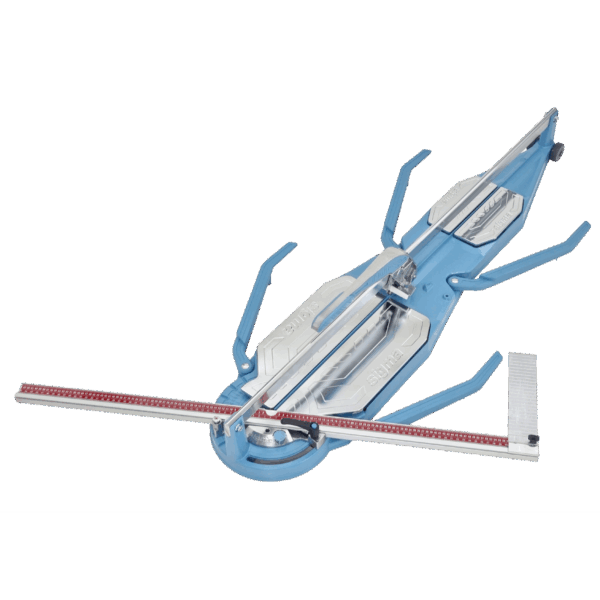

SIGMA 1.25 Manual Tile Cutter NEX (4EN) – Series 4

The Sigma 1.25 NEX (4EN) is designed for cutting extra-long tiles with maximum control and minimal effort. With a 1250mm cutting capacity and upgraded Series 4 technology, this model is ideal for handling today's modern tile formats with precision and confidence.

Series 4 Advantages:

Effortless Scoring: Ball-bearing handle glides smoothly for consistent scoring
Advanced Control: NEX handle includes micrometric pressure adjustment
Accurate Angle Cuts: Reinforced, lockable swivel ruler
Built for Bigger Tiles: Cuts long, heavy tiles up to 19mm thick with ease
Quick Maintenance: Modular design allows for fast part changes

The Sigma 1.25 NEX brings the power and precision required for today’s oversized tile installations—making it an essential tool for serious tile professionals.

Features

Key Features:

Cutting Length: 1250mm
Diagonal Cut: up to 880mm
Max Tile Thickness: 19mm
Series 4 NEX Handle – pull action with precision ball bearings
15mm tungsten carbide scoring wheel
Swivelling ruler with locking system (0°–45°)
Extra-long reinforced aluminium alloy base for large tile stability
Anti-slip support pads and vibration-dampening design

Ideal For:

Tilers working with large-format and plank-style tiles
High-end residential and commercial flooring projects
Contractors seeking precise cuts with minimal chipping
Professionals demanding durability and ease of use

Available Options

Description	SKU	Quantity
12mm Scoring Wheel and Bolt (14A)	SIGS0001-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Ruler Guide (19D)	SIGS0003-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Swivel Ruler 47cm-0-35cm (90LB)	SIG06302-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Ruler Clamping Lever (108621)	SIGS0004-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Ruler Clamping Level Nut (1079104)	SIGS0005-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Complete Adjustable Support Screw (20B)	SIGS0016-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Handle 8mm Groove, 12mm Wheel (24E)	SIG06303-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Universal - Handle Foot Rubber (104033)	SIGS0007-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Universal - Handle Guide Wheel (10144)	SIGS0008-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Universal - Spring (10659)	SIGS0009-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
Sliding Bar Support Screws (Old Type)	SIG06306-670-1-1-1-1	SIGMA 1.25 NEX – Series 4 quantity
